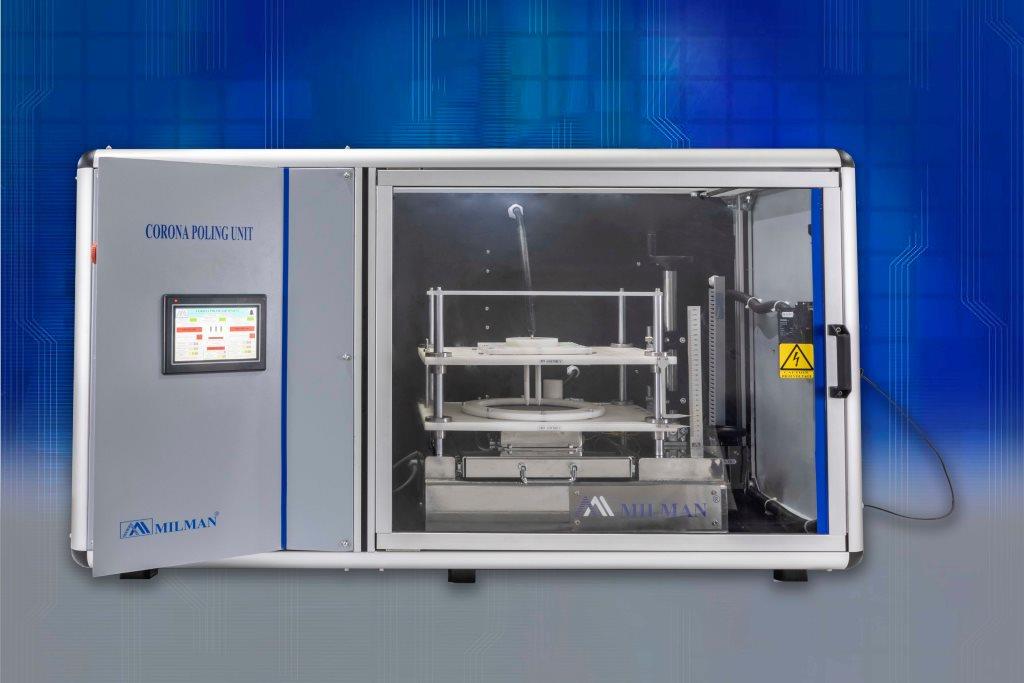

Corona Poling Unit is designed to study potential build up and polarization switching in polymer films. Corona is self-sustaining discharge in air when a high voltage is applied between flat surface and a point electrode. This discharge is utilized to charge the surface by spraying ions on to it. The excess charge may reside on the surface or penetrate it. One of the greatest advantage of corona poling is poling does not require metal electrode deposition on surface.

Click to Enlarge

Click to Enlarge

Click to Enlarge

MAIN FEATURES:

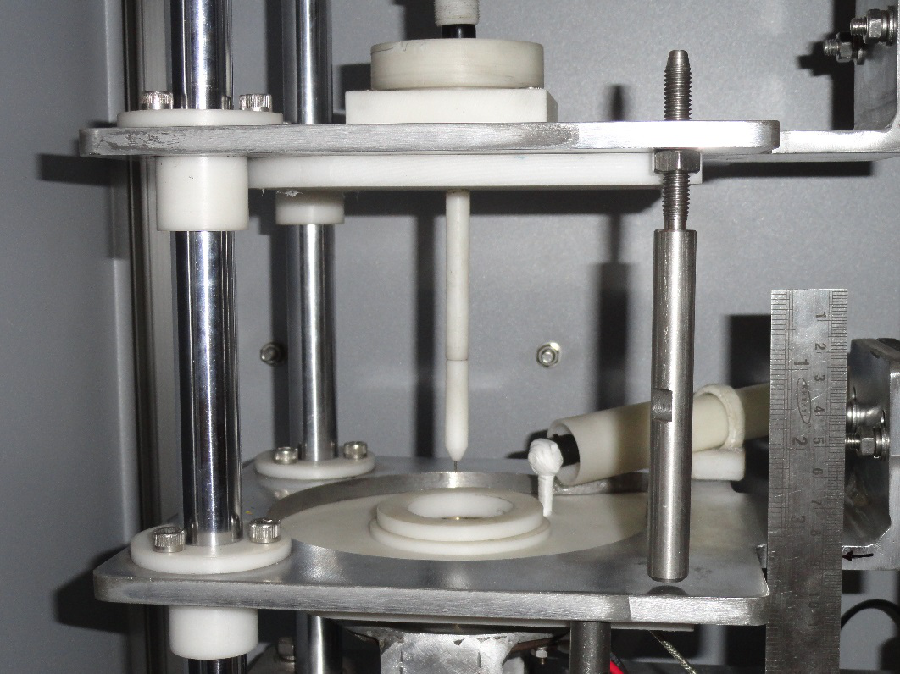

  • Point to Plane as well as Corona Triode assembly
  • Fine SS Mesh Grid assembly
  • Adjustable point-to-grid as well as grid-to-sample distances
  • Independent controls for Corona and grid potentials

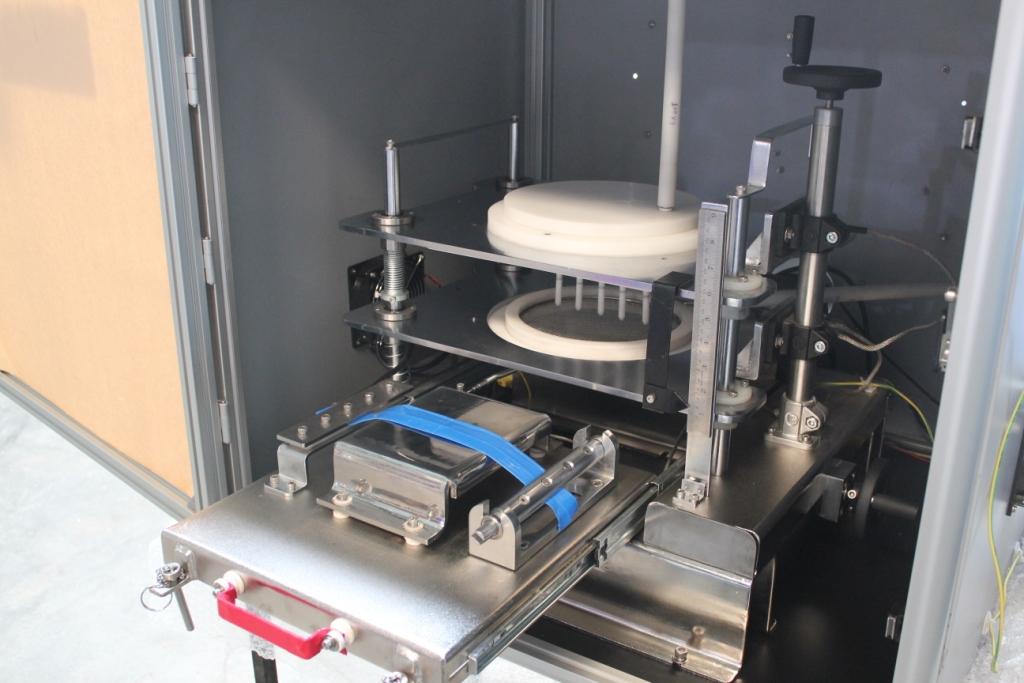

  • Fixed forced air-cooled Sample Heater Plate 75 mm x 75 mm (Linear motion on request)
  • Sample heating up to 250ºC
  • Continuous Voltage control from 10 – 100 kV

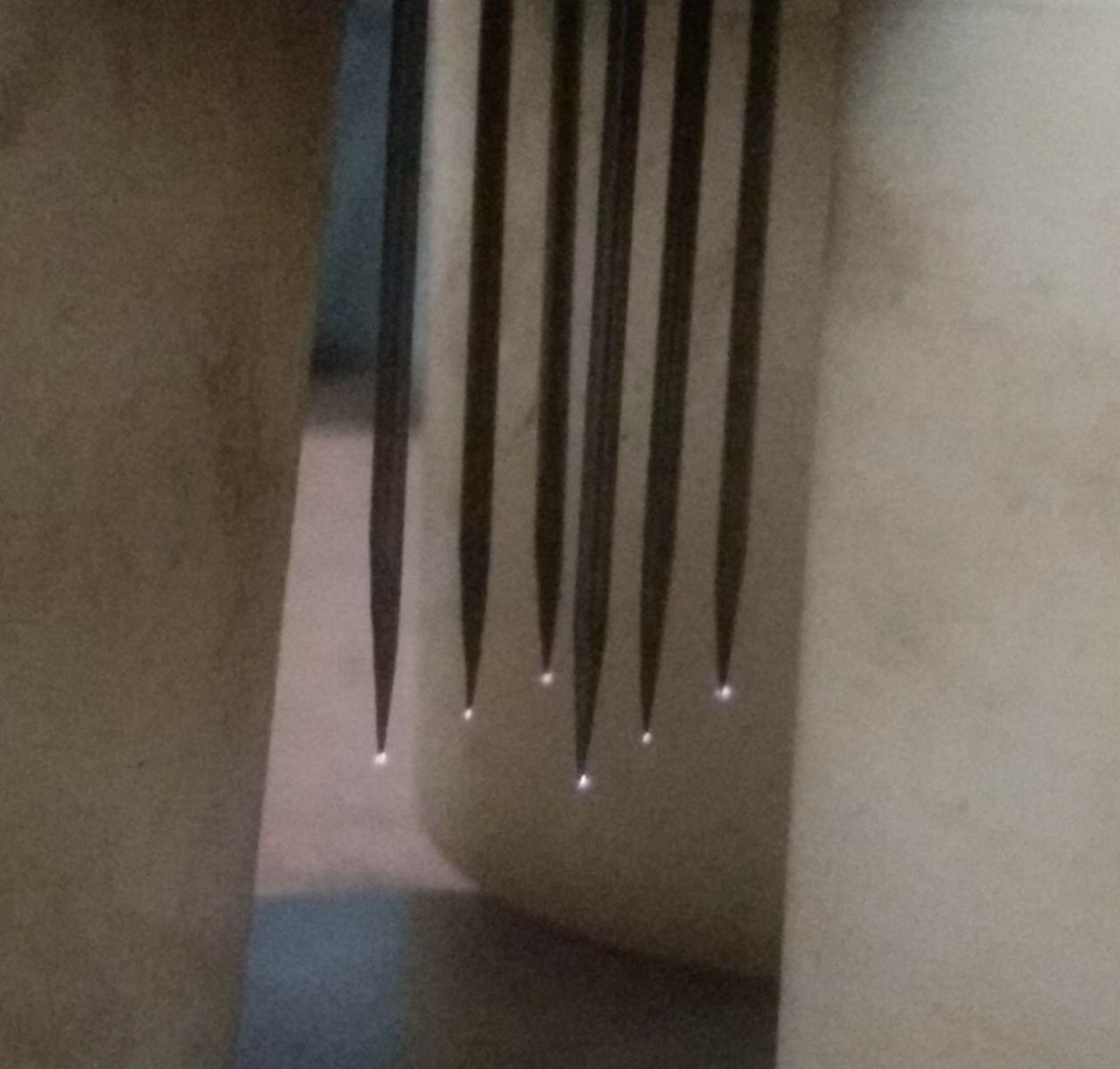

  • Multiple pin holder on request
