What is plasma ion nitriding?
Plasma Ion Nitriding [PIN] is the most established technique to render hard case for many steels of industrial use. Hard case is created by diffusing nitrogen in steels in the presence of Plasma to impart surface hardness for a wide variety of Applications. Plasma nitriding is high precision, environment friendly technology as compared to liquid nitriding and gas nitriding.


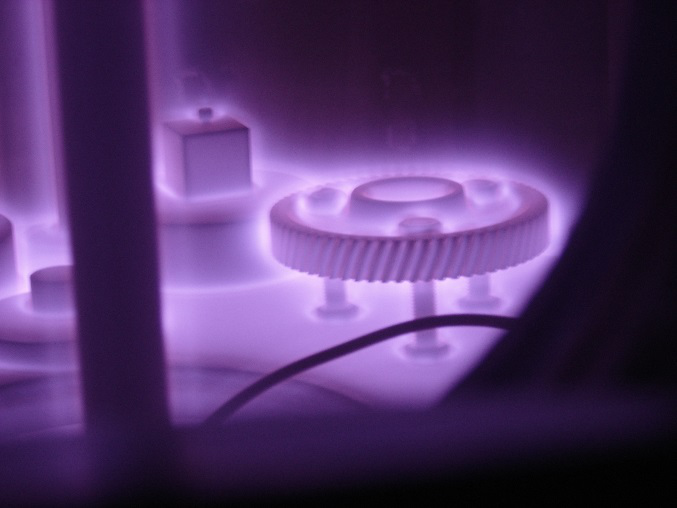

Click to Enlarge


MAIN FEATURES:
  • Process chamber with thermal insulation and cooling facility
  • Novel hot retort design to enhance heat transfer and lower heat losses
  • Three zone heating with independent PID control provides excellent thermal uniformity
  • PLC / PC based control with SCADA package to provide recipe storage, recall for process repeatability.
  • Closed loop PID based pressure control with capacitance manometer and motorized valve.
  • Precision mass flow controllers provide precise control over gas phase chemistry and process.
  • Pulsed dc power supply with advanced arc management and setting of pulse frequency and duty cycle
  • Online fine temperature control by interactive duty cycle control during nitriding
  • Integration of dual process chamber to enhance productivity (optional).
  • PIN equipment for process chamber up to 900º C available on request


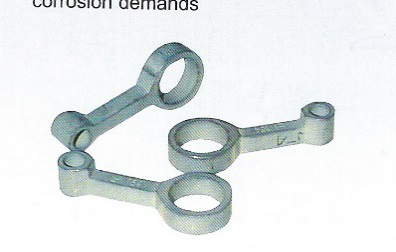

Click to Enlarge

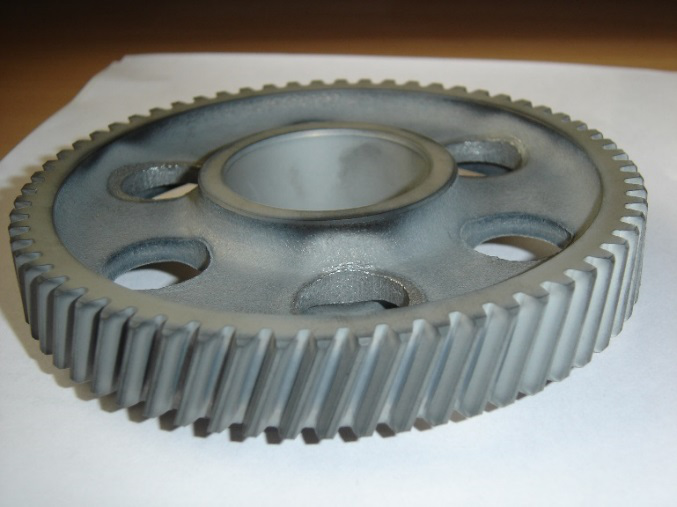

Click to Enlarge

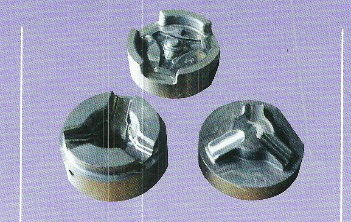

Click to Enlarge

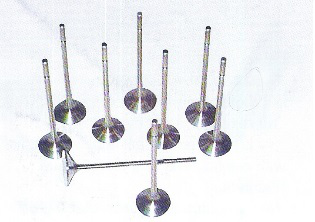

Click to Enlarge


MILMAN Plasmon Series

Models

Features

PLASMON 600

PLASMON 800

PLASMON 1000

Hot Zone (mm)

600 x 800

800 x 1000

1000 x 1300

Work Load (kg)

300 – 600

700 – 900

1500 – 2000

POWER SUPPLY (kW)

25

40

70

Pulsed Current (Amp)

40

100

140

Pulsed Frequency (kHz)

10 - 25

10 - 25

10 – 25

Pressure (mbar)

1 – 5

1 – 5

1 – 5

Process Gases

Ar, N2, H2

Ar, N2, H2, C2H2, O2

Ar, N2, H2, C2H2, O2



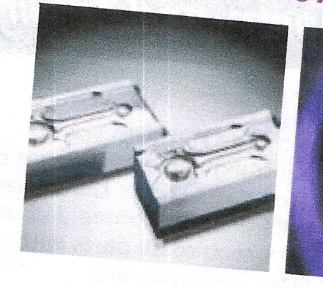

Click to Enlarge

Click to Enlarge


All the equipment listed are based on hot wall design, which includes elaborate insulation of process chamber from outside. Equipment based on cold wall concept will be available on request.
